Removal Instructions - Twist Lock Style

Twist Lock Disassembly (Click on image for larger picture)

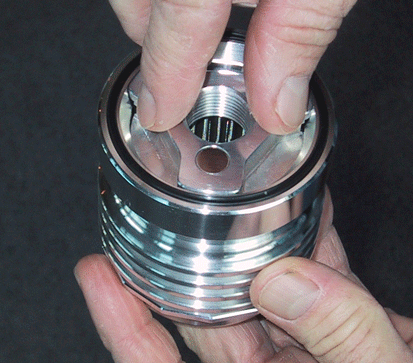

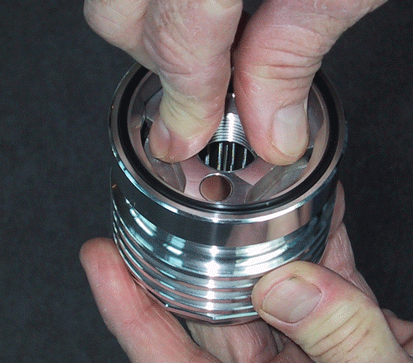

1. Grasp the filter housing in one hand. To prevent scratching the filter housing use care when setting the filter on any surfaces. (a paper towel or small cloth works nice as a pad) 3. Twist filter element 1/3 turn counter clockwise (to the left)

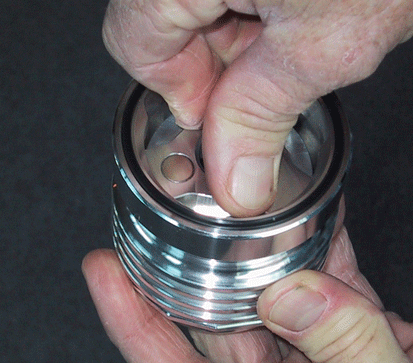

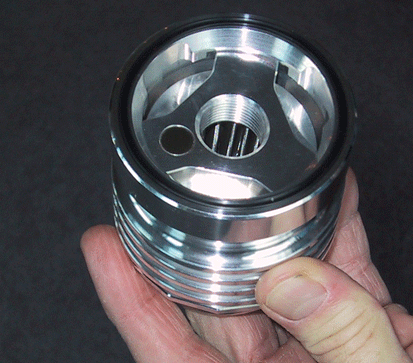

2. Gently push the filter element straight down into the housing. 4. Release the filter element. It should spring up through the 3 slots in the filter housing. You can now remove the filter element for inspection and cleaning (see cleaning instructions)
